XNL 3D Pro GuardDog Enclosure (Ender 3 Frame Compatible)

Please note:
This is a legacy download which is intended for a very specific group of users, and you most likely don’t need this download 😉

I did decided to make this legacy download available for others though, because I thought it might be useful for other ‘heavy modders’ of their Ender 3 (V1)’s

Please do note that there is absolutely no support or whatever on or for this project/download!

Please also make sure to read the description bellow before downloading it.

Download: 63KB


By clicking on the 'I Agree & Add to download basket', you confirm that you have read and agree to the License shown at the License tab.

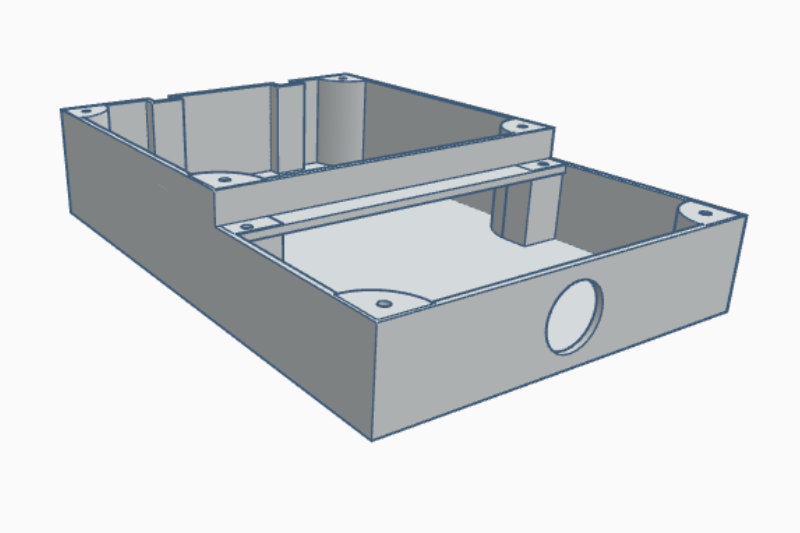

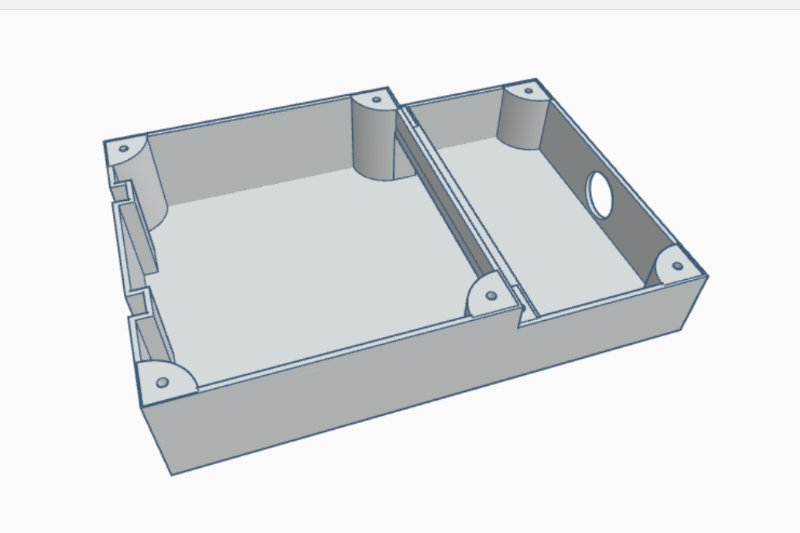

This is the XNL 3D Pro GuardDog Enclosure (intended for the Ender 3 V1 frame), which houses all the additional and custom hardware for the XNL 3D Pro Printers.

This includes for example the USB HUB, additional voltage regulator(s), the XNL 3D Pro GuardDog itself (the custom relay, light, fire protection and temperature control board) and some other additional hardware which is printer specific per build.

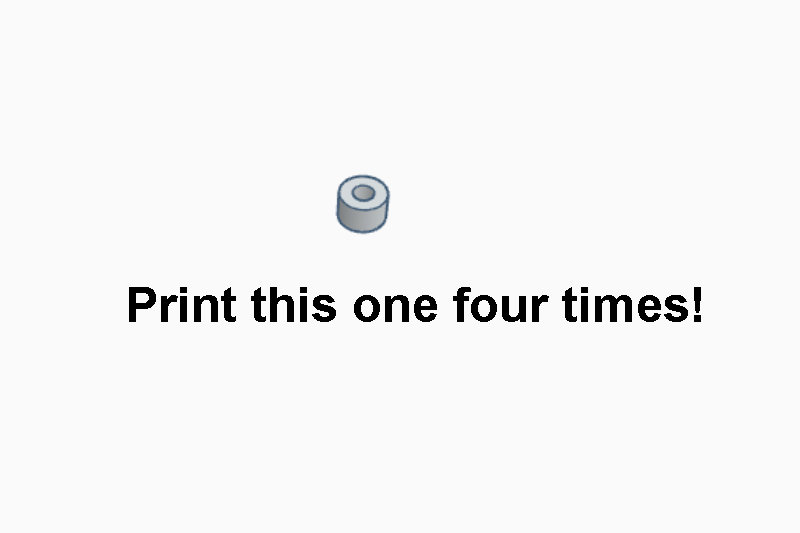

The included spacers can (and should) be used to mount your own custom XNL 3D Pro GuardDog PCB inside the enclosure by drilling holes into the enclosure which match your (custom) PCB.

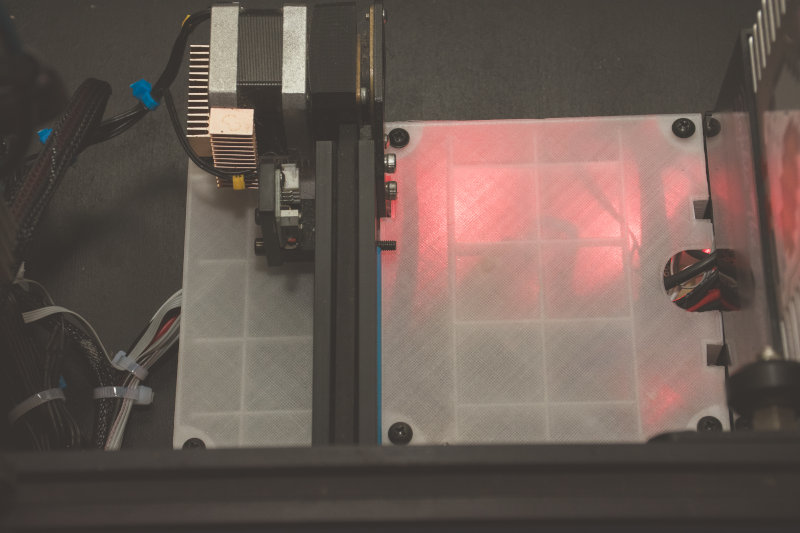

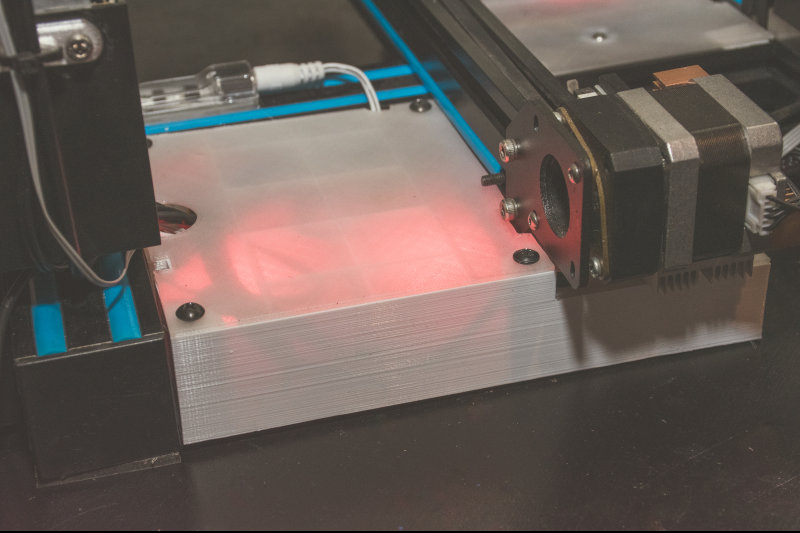

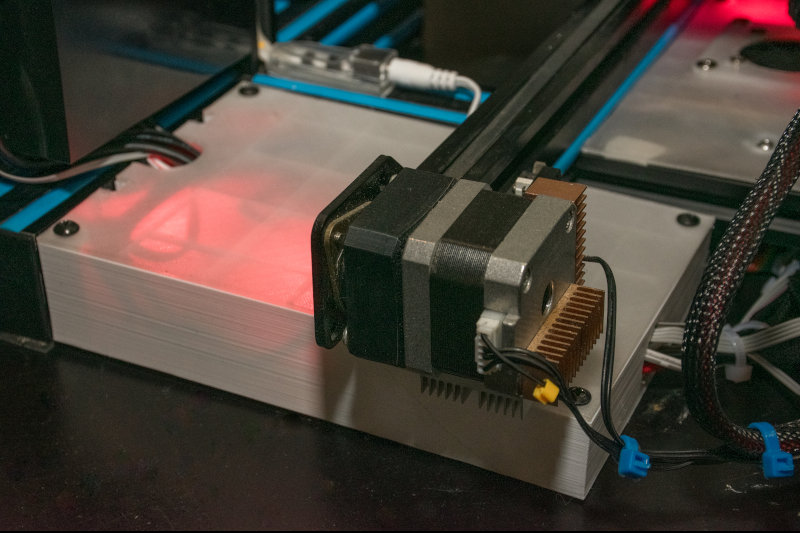

For the enclosure itself you should drill a hole in back wall and the left side wall (which matches with the rail of the frame itself) so that you could use the standard screws and ‘rail nuts’ to install it onto the frame.

On the left side of the enclosure there are two ‘indents’, this is for the XNL 3D Pro Printers which have an additional (either 12V or 5V) power brick tie-wrapped to it on the side for example.

Obviously most regular users won’t need this enclosure at all, but there are still quite a few whom are using the XNL 3D Pro (including quite a few on our own team also). Which is why I decided to also re-release this enclosure on the new public platform of XNL Future Technologies.

IF you are unsure if you need this, and how you would need to install this, then you probably don’t have an XNL 3D Pro and then you don’t need these files either, don’t worry 😉

3D Printing Information

Recommended Layer height: 0.2mm
Adhesion: None or brim
Infill:  I personally prefer 53% (near solid) for these kind of enclosures, but you could change this to you liking
Orientation: As in file
Recommended Material: PETG or ABS (personally I would recommend PETG though)
Estimated Print Times:
Main body: About 16 hours and 40 minutes

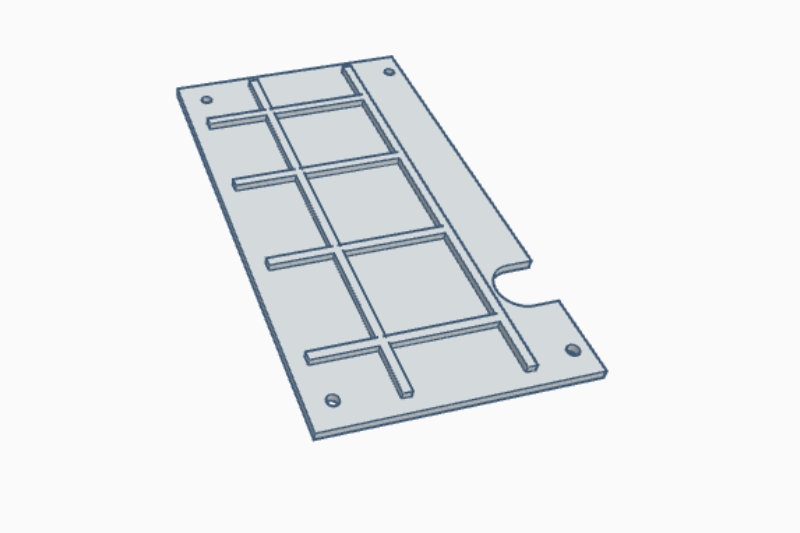

– Cover Small: About 2 hours and 50 minutes

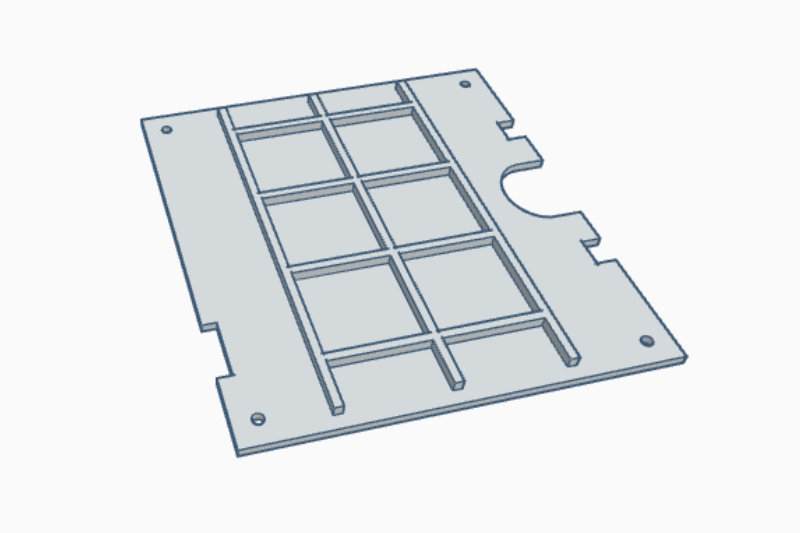

– Cover Large: About 4 hours and 37 minutes
– PCB Spacers (4x):
About 10 minutes for all 4
– Total:
About 24 Hours and 17 minutes
Estimated Required Filament:
Main body: About 46m
– Cover Small: About 7.4m
– Cover Large: About 13m
– PCB Spacers (4x):
About 0.4m
– Total:
About 67m

Additional 3D Printing tip:
DO NOT print these enclosures in PLA! Simply because the heat of the board, or other components and the heatbed COULD potentially affect the enclosure if you do so!
